ZS2EZ ANTENNAS

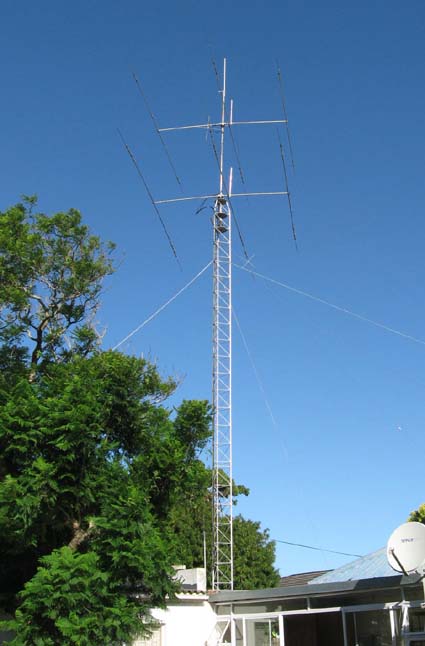

ZS2EZ 50ft tower:
Hy-Gain TH-7DX at 50ft, Cushcraft A3WS with 30m addon at 58ft, Diamond X50 VHF/UHF Collinear at 61ft, 144MHz 10 El +2 LFA at 54ft, 80m dipole at 47ft, 40m Dipole at 47ft, EZ-Wire at 44ft, 60m Dipole at 43ft

ANTENNAS:

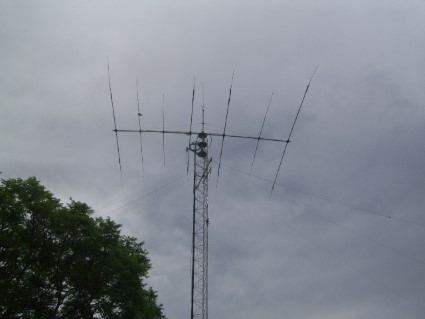

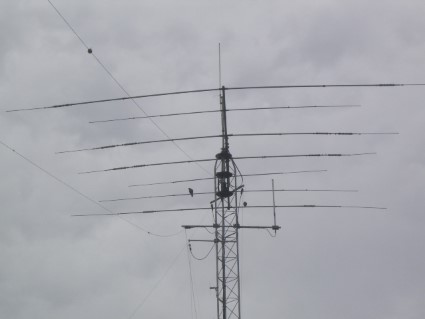

Hy-Gain TH-7DX 7 Element Tribander (10m/15m/20m)
Cushcraft A3WS 3 Element Yagi (17m-12m) with 30m Addon Kit

EZWire 160m-6m Endfed Wire

40m Inverted V Dipole
60m Inverted V Dipole
80m Inverted V Dipole

50MHz G0KSC LFA 5 Element Yagi
70MHz G0KSC LFA 5 Element Yagi
144MHz G0KSC LFA Plus2 10 Element Yagi
Diamond X50 Dualband (2m/70cm) Collinear
162MHz Endfed Dipole (AIS RX)
50MHz Endfed Vertical
UHF Folded Dipole
137MHz Turnstile (NOAA WxSAT RX)
BiCraft BunduBasher EFHW (40-20-15-10m)


The Stack!

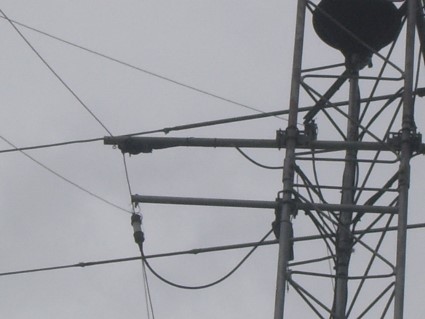

EZWire @ 47ft, 60m Dipole @46ft

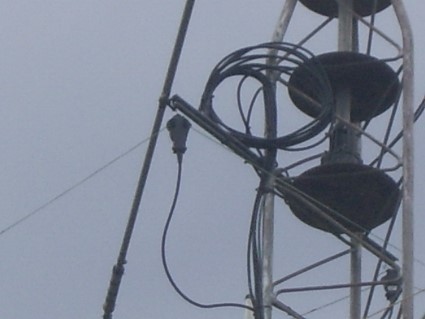

Dipoles : 80m/40m/60m


Closeup showing dipoles and 162MHz Endfed for AIS

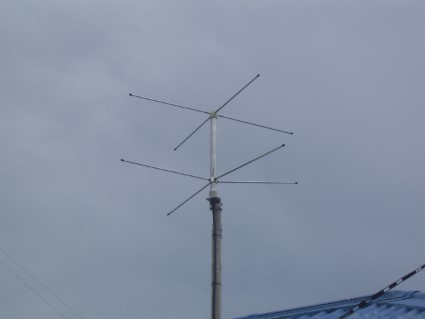

137MHz Turnstile Antenna for NOAA WxSAT RX


"BunduBasher" Endfed Antenna 40m-20m-15m-10m @ 16.5ft

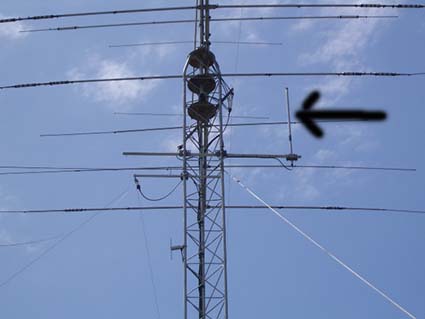

AIS Antenna : 162MHz EndFed Dipole @ 47ft

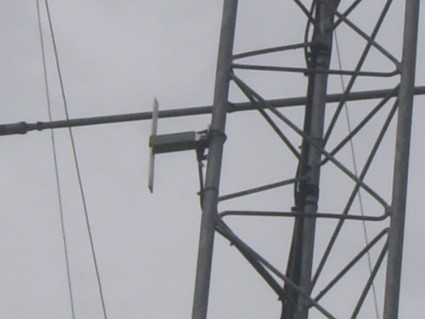

UHF Folded Dipole


50MHz Endfed Vertical
